• Safe, compact and ergonomic Long tiller design allows for efficient and safe operation.
  • Precise lifting and lowering with a fully-proportional hydraulic system.
  • Proportional lifting allows for efficient and safe lifting of any product at any lift speed.
  • Powerful, maintenance-free German AC power train.
  • Core Components from Top Quality Brands.
  • 3 Wheel Structure for Stability.
  • 24V/270Ah industrial lithium battery and onboard charger.
  • Italian ZAPI Controller and Italian ZAPI battery discharge indicator with hour meter.
  • 4000mm - Triple stage masts FFL.
  • Adjustable base legs.
  • Load backrest installed.
  • Plexiglass Operator protection.
  • Emergency power disconnect.
  • The ergonomic control handle is equipped with a horn and a belly button.
  • Dual butterfly-style thumb controls.
  • Crawl speed button for safe operation in tight space.
  • Key switch limits access to approved personnel.

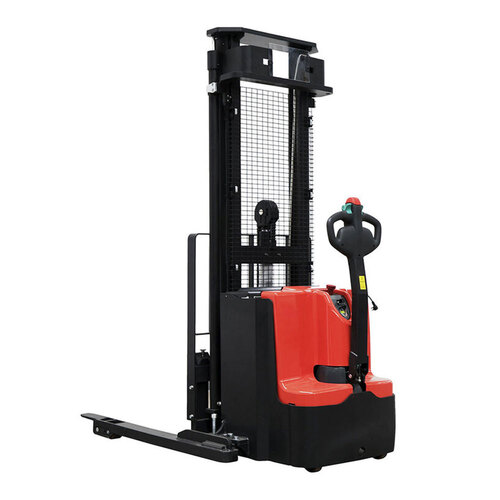

Model PS16TSL-46
Capacity (kg) 1600kg
Mast Height 4600mm
Mast Stage 3
Lower Height 2108mm
Free Lift Height 1520mm
Extend Mast Height 4580mm
Fork Length 1150mm
Fork Size 40 x 120 x 1150mm
Adjustable Base Legs I.D. 965 - 1270mm
Adjustable Base Legs O.D. 1170 - 1470mm
Drive Tire 230 x 70mm polyurethane
Load Wheel 84 x 70mm polyurethane
Power Battery
Battery 24V/270Ah lithium battery and on-board charger
Travel Speed 6km/h (unloaded) and 5.4 km/h (fully loaded)
Operation Type Pedestrian
Service Brake Electromagnetic
